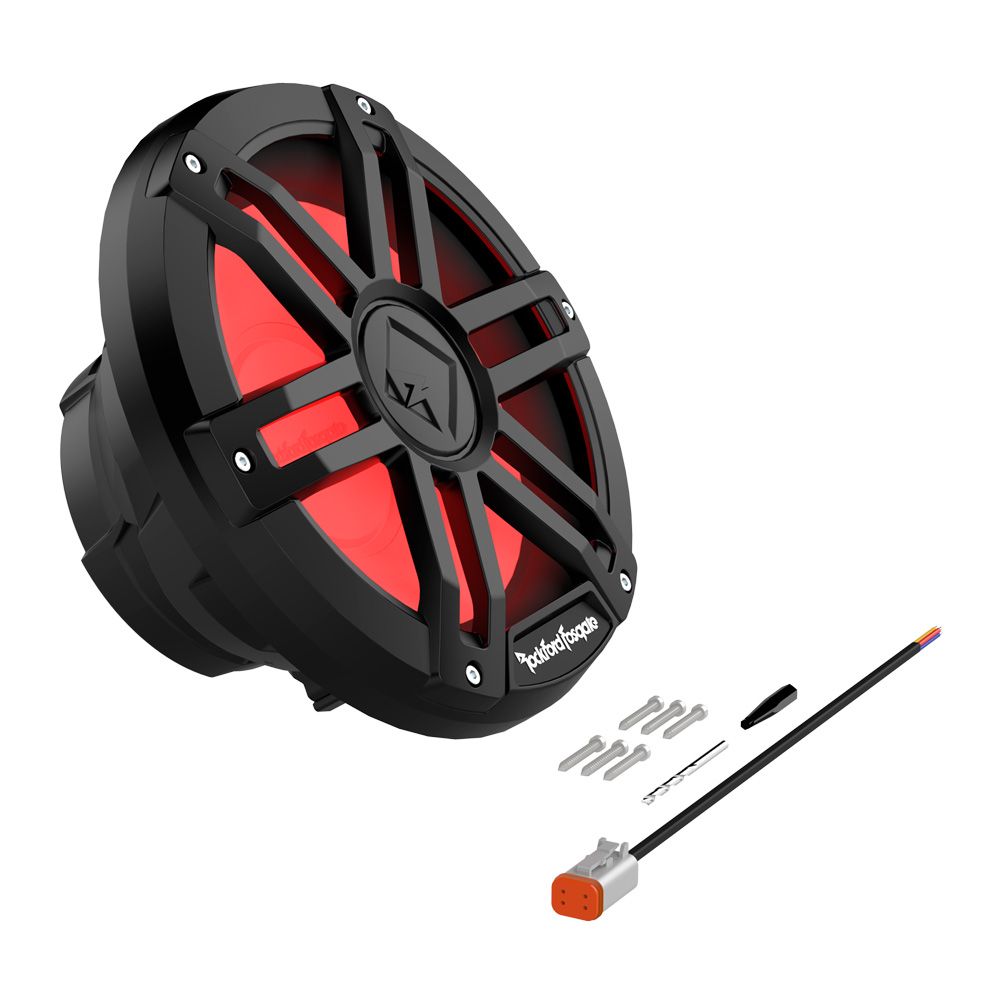

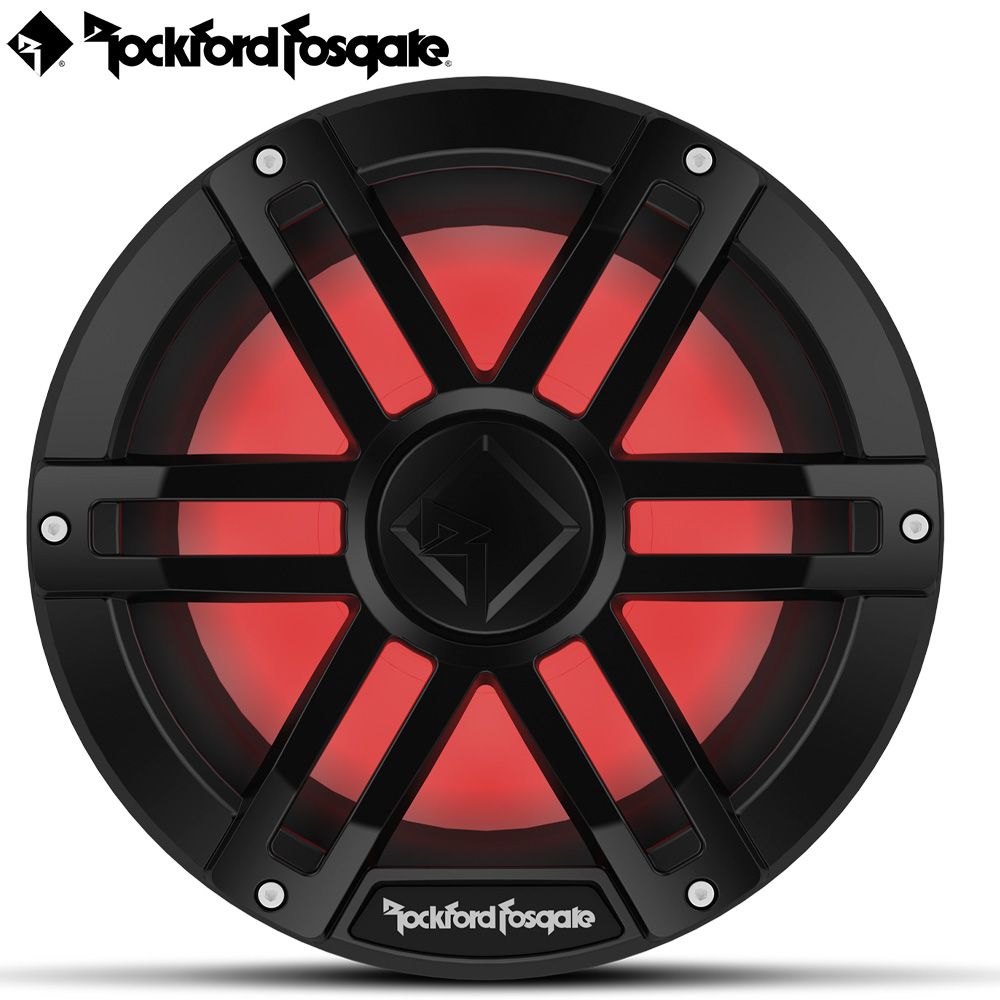

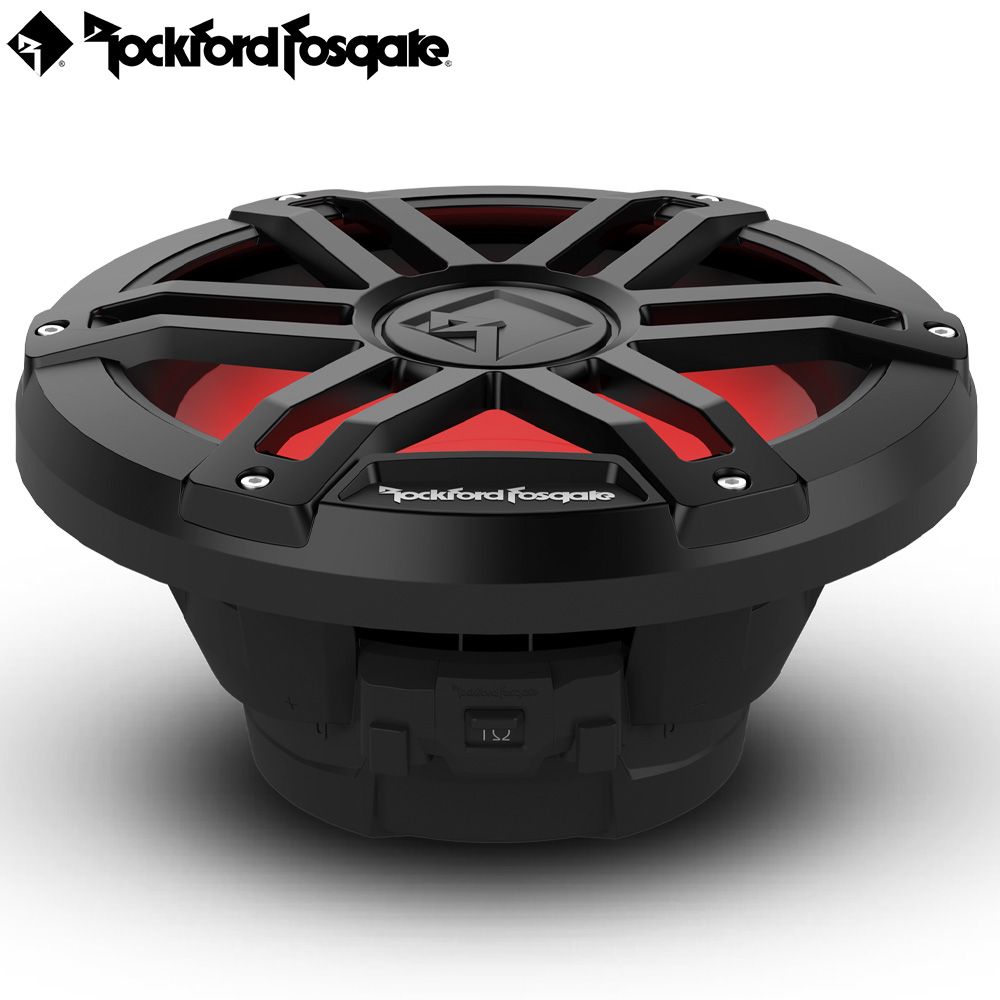

The M1D2-10 Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
FEATURES AT A GLANCE
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Optically clear UV stable RGB Lighting Encapsulation
- 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Fully insulated silicone tinsel leads
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Co-molded surround and mineral filled polypropylene cone body
- Zinc Nickel-plated Marine grade brass connection terminals
- Linear Synthetic Fiber Blend Spiders
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Santoprene VAST Surround
- Vented motor design with water-repelling nano coated mesh screen
- VAST vertical attach surround technique increases effective radiating cone area up to 25%

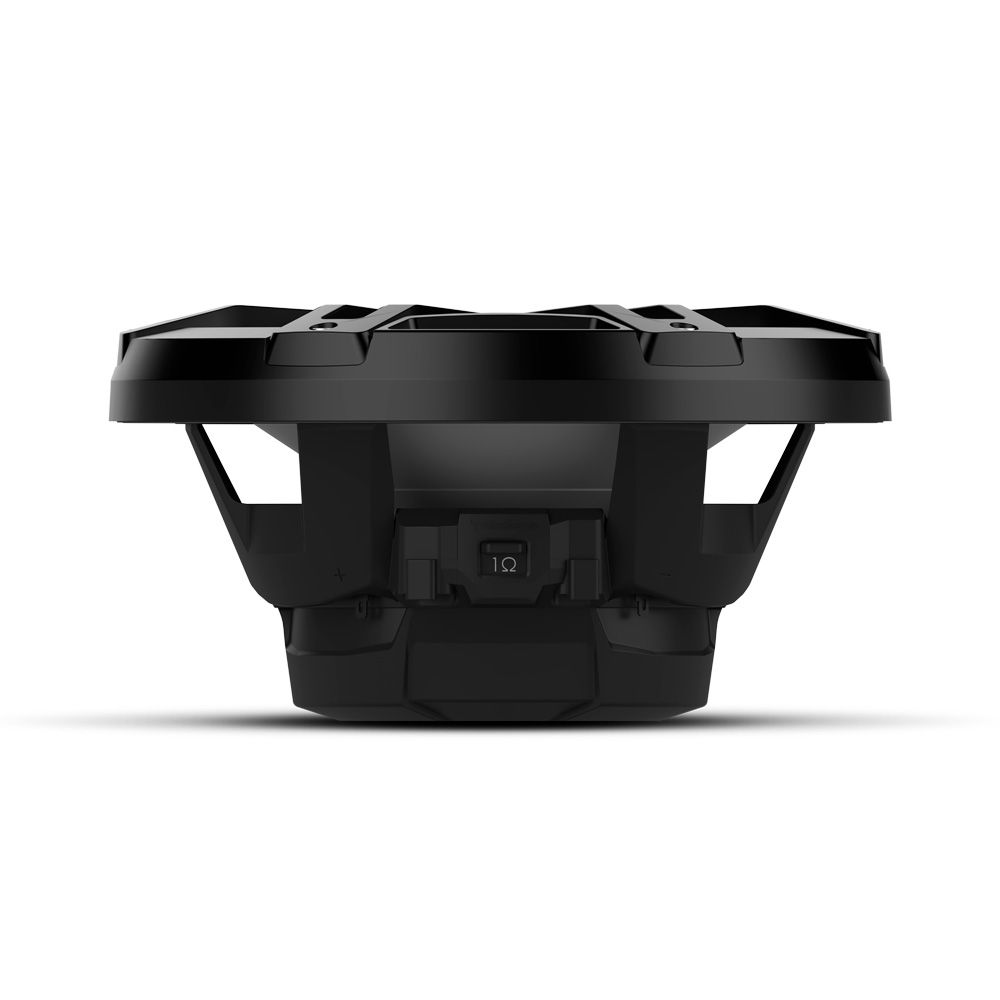

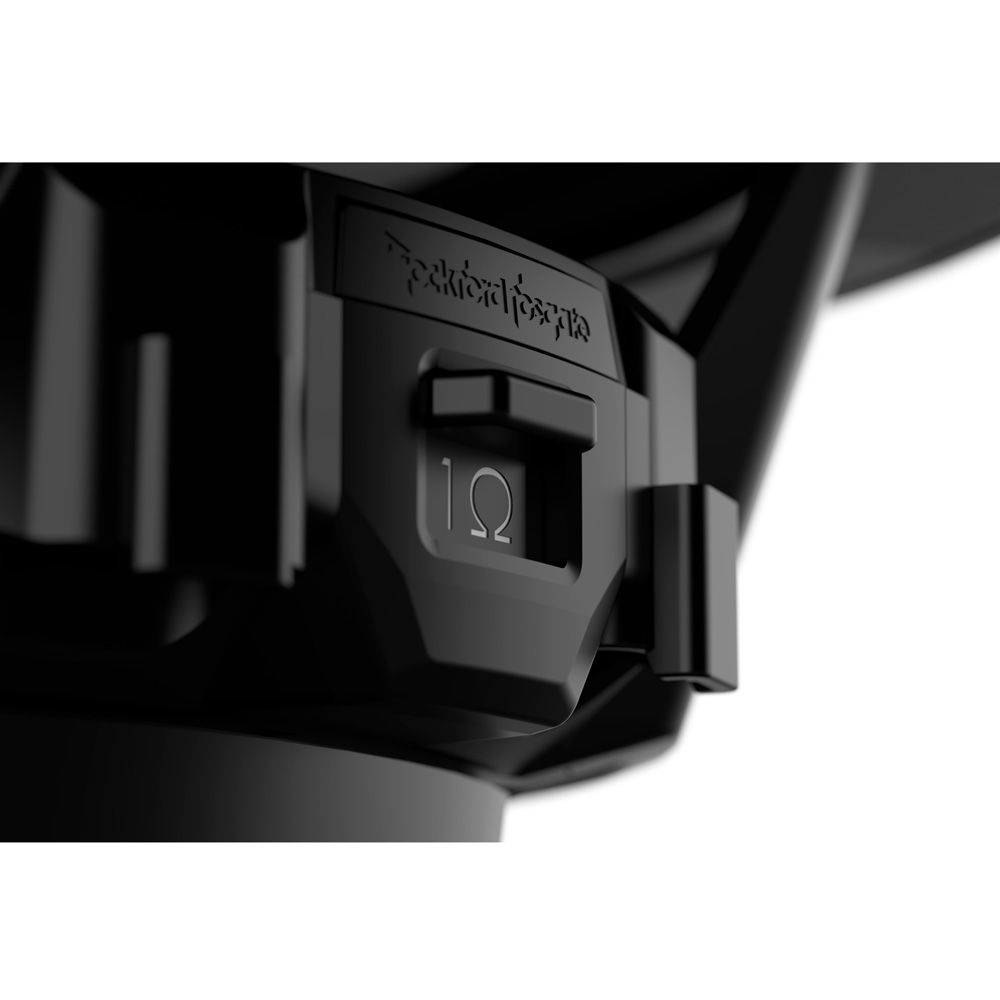

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / SPECIFICATIONS
- Size 10″
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz – 750 Hz
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS) 300 Watts RMS, 1200 Watts PEAK
- Voice Coil Diameter: 2.0″ (50 mm)
- Magnet Weight (oz): 47.70 oz. (1.35 Kg)
- Fs (Hz): 34
- Re (Ohms): 3.7
- Le (mH): 2.22
- Sd (cm2): 394.1
- Qms: 7.80
- Qes: 0.47
- Qts: 0.44
- Vas: 44.2
